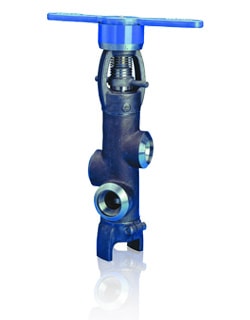

Three Way Service Valve Brochure
Conval has responded to the need for a high pressure, high temperature 3-way valve with easy serviceability for both seats. Excellent service history and versatility make the CLAMPSEAL® valve the choice for 3-way service.
- Industry’s Lowest Life Cycle Costs
- High-performance Packing System
Standard Sizes
Sizes through 4”
Pressure Rating
ASME Class through 4500 #
Standard Casting ASME Materials
SA-216 Gr. WCB, SA-217 Gr. WC9, SA-217 Gr. 12A, SA-351 Gr. CF8M
Connections
Socket Weld, Butt Weld, Flanged End, Clamp Connector
Accessories
Actuators – electric, pneumatic, or hydraulic
Limitswitch – Single or double
Locking Devices – open, closed, or both
Position Indicator
Stem Shroud
Design Features
Pressure Seal Bonnet
The simple and effective pressure seal bonnet provides ready access for servicing with no welds to cut or seal rings or gaskets to replace. The body-to-bonnet joint integrity is maintained through countless thermal cycles.
Single-piece Gland
In extreme environments, the simpler the design and the fewer the parts, the better. The durable single-piece stainless steel gland contributes to the longevity of the valve.
Axial-Loaded Packing System
The Axial design ensures tight concentricity, which eliminates side loading of the packing and minimizes wear forces on the trim components. This feature is critical for superior valve performance.
Pressure-Actuated Backseat
The Clampseal® pressure-actuated backseat provides maximum valve integrity by ensuring a positive internal stop for the valve stem and disc assembly. The pressure actuated backseat also extends packing life by securely isolating the packing from the pressure when the valve is fully open.
Rapid In-Line Renewability
The CLAMPSEAL® Valve is much easier to renew than anything else on the market. The CLAMPSEAL® Valve line provides a modular solution to rising maintenance expenses. Low acquisition cost is not as important as low cost over the serviceable life of a valve. Maintaining a Conval valve is far easier and much less costly than replacing a competitor’s valve.
